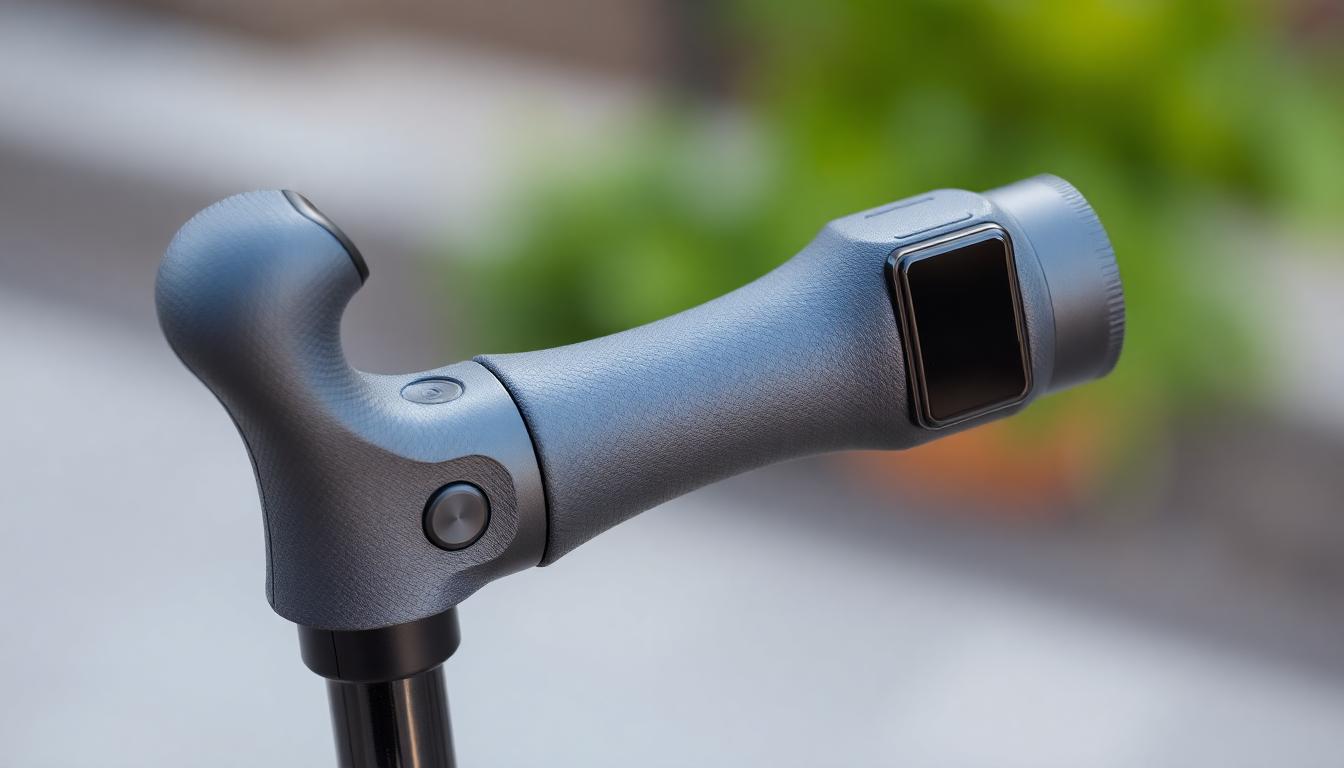

Why Handle Design Matters: How Grip Shape, Materials & Mounting Affect Comfort, Stability and Sensor Accuracy in Smart Canes

Introduction

As mobility aids evolve into connected medical devices, the humble cane has become a platform for sensing, monitoring and digital assistance. Designers developing smart canes often prioritize electronics, algorithms and battery life — and sometimes underestimate the single most important point of contact between user and device: the handle. Handle design is not merely an ergonomic detail. It determines comfort, stability, user confidence and the quality of signals arriving at onboard sensors. Poor handle design degrades user adoption and introduces sensor artifacts that reduce the effectiveness of fall detection, gait analysis and other digital health functions.

What This Article Covers

• How grip shape, materials and mounting interact with human biomechanics and sensor systems
• Concrete design recommendations and trade-offs for product teams
• Testing, calibration and validation strategies to ensure both user comfort and reliable sensor data
• Regulatory, manufacturing and maintenance considerations
• Future trends and practical next steps

Why Handle Design Is Critical for Smart Canes

Smart canes bridge mechanical support and human-machine interaction. The handle sits at that intersection: it transmits forces, torques and micro-motions from the user to the cane shaft and its embedded sensors. This mechanical coupling affects:

• Comfort and long-term musculoskeletal strain
• Balance and fall risk reduction
• Signal fidelity for inertial and force-based sensors
• User behavior, including grip patterns and cane usage frequency

Because many algorithms rely on precise motion or force signatures, small changes in hand position, grip pressure or local compliance can produce large differences in outcomes. A handle that feels comfortable but introduces significant sensor noise can lead to false positives in fall detection and inaccurate gait metrics. Conversely, a handle optimized only for sensors, with a hard, slippery surface, will reduce adoption and increase fatigue.

Biomechanics: How Hands, Wrists and Arms Interact with Handles

Understanding human biomechanics is essential for effective handle design. Key factors include hand size and shape, grip strength, joint range of motion, tactile sensitivity and common age-related conditions such as osteoarthritis.

• Force distribution: When holding a cane, forces are transmitted through the palm, fingers and wrist. The way these forces are distributed affects both perceived stability and how much load reaches sensors in the handle or shaft.
• Wrist alignment: Neutral wrist alignment reduces fatigue and long-term strain. Grip angle and handle geometry can promote neutral wrist posture or force unnatural ulnar/radial deviation and extension.
• Grip patterns: Users may employ various grips — full palm, fingertip, underhand, or using a cuff to transfer load to the forearm. Each pattern changes the mechanical path and sensor readings.
• Compensatory behavior: Pain or weakness may cause users to grip more tightly or switch to a cuffed grip, leading to higher force variability and different sensor signatures.

Grip Shape: Varieties, Benefits and Drawbacks

Grip shape is the most visible aspect of handle design. Popular shapes include pistol grips, T-handles, contoured ergonomic grips, cylindrical handles, and specialized cuffs. Each shape brings trade-offs in comfort, control and sensor coupling.

• Pistol-style grips
  • Design: Angled handle resembling a pistol grip, often with defined thumb rests.
  • Benefits: Good directional control, reduces wrist extension, supports heavier loads, and helps align forearm with cane shaft for predictable forces.
  • Drawbacks: Can be bulky; less suitable for users who need to frequently change hand positions.
• T-handles
  • Design: Horizontal bar across the top of the shaft, similar to a top hat.
  • Benefits: Simple to grab, distributes pressure across the palm, quick release possible, useful for short-term assistance.
  • Drawbacks: Not ideal for heavy lateral loads or for users who require wrist support.
• Contoured or anatomical grips
  • Design: Molded to match palm geometry with raised areas for fingers and thumb rests.
  • Benefits: Reduces pressure points and improves stability for users with limited grip strength or arthritis.
  • Drawbacks: Highly user-specific; one size rarely fits all. Can trap sweat and be harder to clean.
• Cylindrical grips
  • Design: Simple round or slightly textured tube.
  • Benefits: Universal, easy to manufacture and adjust; compatible with many sensors if kept rigid.
  • Drawbacks: May increase fatigue during prolonged use; less ergonomic for those with joint pain.
• Cuff-integrated grips
  • Design: Includes a strap or cuff to secure the cane to the wrist or forearm.
  • Benefits: Transfers load from the fingers to the forearm, beneficial for weak grip strength and reduces risk of dropping the cane.
  • Drawbacks: Adds complexity to sensor interpretation because forces bypass the handle; may reduce the need for active gripping and change data patterns.

Grip Diameter, Texture and Surface Features

Several secondary properties influence comfort and control:

• Diameter: There is no single optimal diameter, but many studies and ergonomic guidelines suggest 30 6 mm for smaller hands and up to 40 mm for larger hands. Too small increases pinch force and fatigue; too large reduces fingertip control.
• Texture: Micro-textures, knurling or patterned elastomers reduce slippage. Excessively rough textures may irritate sensitive skin.
• Thumb rests and palm supports: These features can encourage consistent hand placement, producing repeatable sensor data and reducing fatigue.
• Edge radii and transitions: Smooth transitions reduce pressure concentrations and prevent blistering or skin breakdown over time.

Materials: Comfort, Durability and Signal Effects

Material selection balances comfort, longevity and how well the material transmits or damps motion and force to sensors.

• Soft elastomers (silicone, TPE, foam):
  • Pros: High friction, cushioning, comfortable for prolonged use.
  • Cons: Compress under load changing contact geometry and potentially introducing drift or variability in force sensors. Some formulations absorb sweat and degrade over time.
• Rigid plastics and composites:
  • Pros: Predictable geometry and stiffness which aids consistent sensor readings and easier integration of electronics.
  • Cons: Poor shock damping; without textured coatings they can be slippery and less comfortable for long sessions.
• Wood:
  • Pros: Natural warmth and damping, aesthetic appeal.
  • Cons: Hygroscopic, variable properties, and harder to reliably integrate sensors and seals.
• Metals (aluminum, steel):
  • Pros: Structural strength and predictable stiffness for sensor placement.
  • Cons: Cold touch, and potential for higher vibration transmission to sensors. Often requires outer layers for comfort.

Mounting and Mechanical Interfaces

The way the handle attaches to the shaft determines how consistently forces are transferred and how predictable sensor data will be.

• Fixed vs adjustable mounts:
  • Fixed mounts yield repeatable sensor geometry and simpler calibration but reduce personalization.
  • Adjustable mounts add versatility for different users and activities but require recalibration strategies in firmware.
• Fastening methods: Keyed splines, dowel pins, threaded joints and clamp systems each have stiffness and repeatability characteristics. Keyed interfaces reduce rotational slippage and help maintain sensor alignment.
• Compliant layers and vibration isolation: Adding compliant elements can attenuate high-frequency noise but also change the effective dynamics of the device. Balance compliance to filter irrelevant vibration without distorting low-frequency motion signals used in gait analysis.
• Internal routing and sealing: Routing cables internally reduces snag risk and mechanical artifacts. Waterproofing seals near the handle are crucial where sweat, cleaning or weather exposure occur.

Sensor Types and How Handle Design Affects Their Signals

Smart canes commonly include IMUs, load/force sensors, pressure sensors, capacitive touch sensors and sometimes strain gauges or magnetometers. Handle design can enhance or impair the performance of each.

• IMUs (accelerometers and gyroscopes):
  • Effect: IMUs measure linear acceleration and angular velocity. If mounted on a rigid, repeatable structure near the handle-shaft junction, IMUs capture cane motion representative of whole-device dynamics.
  • Impact of design: Soft grips or loose mountings produce micro-motions and local vibrations that appear as noise and bias, complicating sensor fusion and drift correction.
• Load cells and force sensors:
  • Effect: Measure axial and lateral loads applied by the user. Their readings assume known force transfer paths.
  • Impact of design: Cuffs and large palm rests change where load is applied, reducing effective readings unless the sensor layout is recalibrated for that handle geometry.
• Pressure and tactile sensors:
  • Effect: Map contact pressure across the handle to infer grip patterns and user intent.
  • Impact of design: Thick soft layers can attenuate and delay pressure changes making dynamic events (slips, sudden pushes) harder to detect accurately.
• Capacitive sensors and touch detection:
  • Effect: Detect presence of the hand and approximate contact area.
  • Impact of design: Conductive materials, moisture and coatings alter capacitance. Insulating layers reduce reliability unless sensor sensitivity is increased and shielding is considered.
• Strain gauges and bending sensors:
  • Effect: Directly measure bending or torsion in the shaft.
  • Impact of design: Handle stiffness and where the gauge is placed influence the relationship between applied hand forces and measured strain.

Signal Processing, Fusion and Software Considerations

Handle design and sensor placement shape the raw data; software turns that noisy raw data into actionable insights. Design teams must align mechanical and software choices.

• Filtering strategies: Use band-pass filtering to remove high-frequency micro-vibrations introduced by soft grips while preserving gait and fall-related frequencies (typically 0.50 Hz to 15 Hz depending on the event).
• Sensor fusion: Combining IMU data with force/pressure sensors improves robustness: for example, a sudden load spike without matching acceleration might indicate object contact rather than a fall.
• Adaptive algorithms: Machine learning models can learn per-user baselines and adjust sensitivity, particularly useful with adjustable handles or people with atypical gait patterns.
• Onboarding calibration: Include guided calibration steps in companion apps to capture handle angle, preferred grip position and a baseline walking sequence. Store multiple profiles for different configurations.
• Drift correction and recalibration triggers: Implement automatic checks that prompt users or trigger background recalibration when the device detects persistent changes in signal characteristics (e.g., after handle changes or after a major temperature shift).

Testing and Validation: From Bench to Field

Robust testing ensures designs meet both ergonomic and sensing requirements. A staged approach works best.

• Bench and mechanical testing:
  • Repeatable force and motion rigs to apply known loads and accelerations while logging sensor outputs across handle prototypes.
  • Vibration and modal analysis to identify resonances introduced by handle geometry or mounts that could alias with gait frequencies.
• Biomechanical and user testing:
  • Diverse user cohorts across age, hand sizes and impairments to capture a wide range of grips and behaviors.
  • Surveys and standardized comfort scales (e.g., Borg CR10, visual analog scales) for subjective feedback, plus objective measures like time-to-fatigue, grip strength and postural stability tests.
• Field trials:
  • Multi-week deployments to observe real-world usage, cleaning behavior and long-term material changes that affect sensor readings.
• Statistical validation:
  • Analyze sensitivity, specificity and false-positive rates for fall detection and event classification across handle variants. Use cross-validation and holdout test sets for algorithmic claims.

Case Studies and Examples

Examining real or hypothetical scenarios highlights how handle choices matter.

• Case 1 6 Arthritic user and contoured grip:

  An elderly user with moderate hand osteoarthritis reported reduced pain with a contoured grip. However, pressure sensors embedded under a thin foam layer showed slower response times and higher variance than the same sensors under a rigid handle. Solution: redesign internal sensor mounts to sit against a firmer sub-shell while keeping the soft outer layer for comfort, and recalibrate pressure thresholds accordingly.

• Case 2 6 Adjustable handle angle and mobile app calibration:

  A mid-market smart cane offered adjustable handle angles. Without automatic recalibration, the fall detection algorithm flagged unusual motion as potential falls when users adjusted the handle. Solution: app prompts for a quick 30-second calibration walk after angle changes and stores multiple angle profiles per user.

• Case 3 6 Cuffed handle and false negatives:

  A rehab-focused cane with a forearm cuff produced fewer drop incidents but also altered force transfer pathways, resulting in undercounting of cane-supported steps in gait analysis. Solution: integrate a secondary force sensor near the cuff interface and incorporate cuff use as a selectable mode in analytics.

Design Trade-offs and How to Make Decisions

Design involves balancing competing priorities. Here are common trade-offs and how to approach them.

• Comfort vs sensor fidelity: If comfort demands soft materials, use a dual-structure: a rigid internal shell for sensors and a replaceable soft outer sleeve for the user-facing surface.
• Adjustability vs repeatability: If adjustability is required, prioritize keyed, repeatable joints and pair them with software-driven recalibration workflows.
• Aesthetics vs hygiene: Choose finishes that are attractive but tolerate frequent cleaning; make outer sleeves replaceable and machine-washable when possible.
• Cost vs capability: Prioritize reliability and safety features early (robust mounts, well-placed IMUs) and add higher-fidelity sensors in premium models.

Practical Design Checklist

Use this checklist to align mechanical, sensor and user experience design:

• Define target user profiles (age range, hand sizes, common impairments)
• Select primary use cases: fall detection, gait monitoring, navigation assistance
• Choose handle shapes to prototype: at least two variants (e.g., contoured and cylindrical)
• Design internal rigid mounting points for IMUs and load cells near the handle-shaft junction
• Specify material stack: rigid inner shell + thin soft outer layer
• Plan for keyed or splined mounting interfaces to ensure repeatable orientation
• Include strain reliefs and internal cable routing with IP-rated seals at openings
• Develop onboarding calibration flow in the app for handle adjustments and user profiles
• Create test protocols for bench, biomechanical and field validation
• Document cleaning, maintenance and replacement procedures for outer sleeves

Accessibility and Inclusive Design

Smart canes must be inclusive. Considerations include:

• Multiple handle sizes and optional cuff accessories to accommodate reduced grip strength or dexterity
• Low-force, easy-release locking mechanisms for adjustable handles
• Clear tactile features for visually impaired users and audible haptic feedback for mode changes
• Companion app accessibility: screen-reader compatibility, large fonts and simple guided calibration steps

Manufacturing, Durability and Maintenance

Design decisions impact manufacturability and lifecycle costs.

• Choose materials compatible with injection molding or overmolding to create a durable rigid core with a soft outer layer.
• Design for disassembly so outer sleeves and electronics can be serviced or replaced without specialized tools.
• Specify cleaning protocols and materials that withstand common disinfectants, particularly for clinical deployments.
• Run accelerated aging tests to simulate multi-year use and sweat exposure to evaluate long-term sensor and material performance.

Regulatory and Standards Considerations

Depending on target markets and claims, smart canes may be regulated as medical devices. Relevant considerations include:

• Classification: Determine device class early (medical device or consumer wellness) as this affects required testing and documentation.
• Standards: Consider ISO and IEC standards for mechanical safety, electromagnetic compatibility (EMC), and biocompatibility of skin-contacting materials.
• Data security and privacy: Ensure data encryption, secure pairing and compliance with regional data laws such as HIPAA in the US if health data is transmitted.
• Clinical validation: For safety-critical claims like fall detection, run clinical validation studies that meet regulatory guidelines and produce robust evidence.

Maintenance, Cleaning and Hygiene

Handles are frequently touched and require practical maintenance protocols.

• Design outer covers to be removable and washable; specify washing temperatures and detergent compatibility.
• Avoid materials that absorb sweat or moisture; prefer hydrophobic coatings or antimicrobial materials where appropriate.
• Provide clear user instructions for cleaning, including disinfectant compatibility and drying time to avoid material degradation.
• Offer replacement sleeves and parts as consumables to extend product life and maintain hygiene.

User Training and Onboarding

Even the best designs benefit from clear user education.

• Guide users through initial grip positioning, handle adjustments and recommended walking posture in the companion app or printed quick-start manual.
• Include video tutorials that demonstrate calibration routines and explain how grip changes affect sensor readings.
• Offer customer support pathways for adjustments, replacements and recalibration assistance.

Future Trends and Emerging Opportunities

Handle design for smart canes will evolve with materials science, sensors and AI.

• Adaptive and active grips: Soft robotic actuators and variable stiffness materials could adapt handle compliance in real time for comfort and sensing needs.
• Integrated haptics: Tactile feedback for navigation cues, reminders or alerts to augment visual and audio notifications.
• Personalized ergonomics through AI: Machine learning models can recommend handle shapes and sleeve thicknesses based on user behavior and biomechanical data.
• Energy harvesting: Kinetic energy capture from handle motion to extend battery life for sensors.
• Advanced multimodal sensing: Combining pressure mapping, IMUs, heart rate sensors embedded near the palm could yield richer health insights while preserving comfort.

Conclusion

Handle design is a central determinant of both user experience and sensor performance in smart canes. It influences comfort, balance, long-term adoption and the accuracy of the algorithms that underpin safety and health monitoring. Product teams that integrate ergonomic principles with careful sensor placement, repeatable mounting mechanisms and robust software calibration will deliver safer, more reliable and more widely adopted smart cane solutions. Prioritize human-centered prototyping, comprehensive testing and flexible software strategies to accommodate variability in grips and mounting choices.

Next Steps for Designers and Teams

• Map user personas and prioritize handle prototypes that meet their needs.
• Build early prototypes with a rigid internal shell and a replaceable soft sleeve to test comfort and sensor fidelity in parallel.
• Implement onboarding calibrations in your app and plan for ongoing recalibration triggers.
• Run bench and field tests with diverse users and iterate based on both subjective comfort data and objective sensor performance metrics.

Final Thoughts

Smart canes are more than sensors on a stick. They are tools of daily living that must feel natural and trustworthy. The handle is where trust is formed. Thoughtful investments in grip shape, materials and mounting do more than reduce discomfort; they are central to delivering accurate, actionable sensing that can improve safety and independence for users. Design with hands and sensors in mind, and the cane becomes a true partner in mobility.
