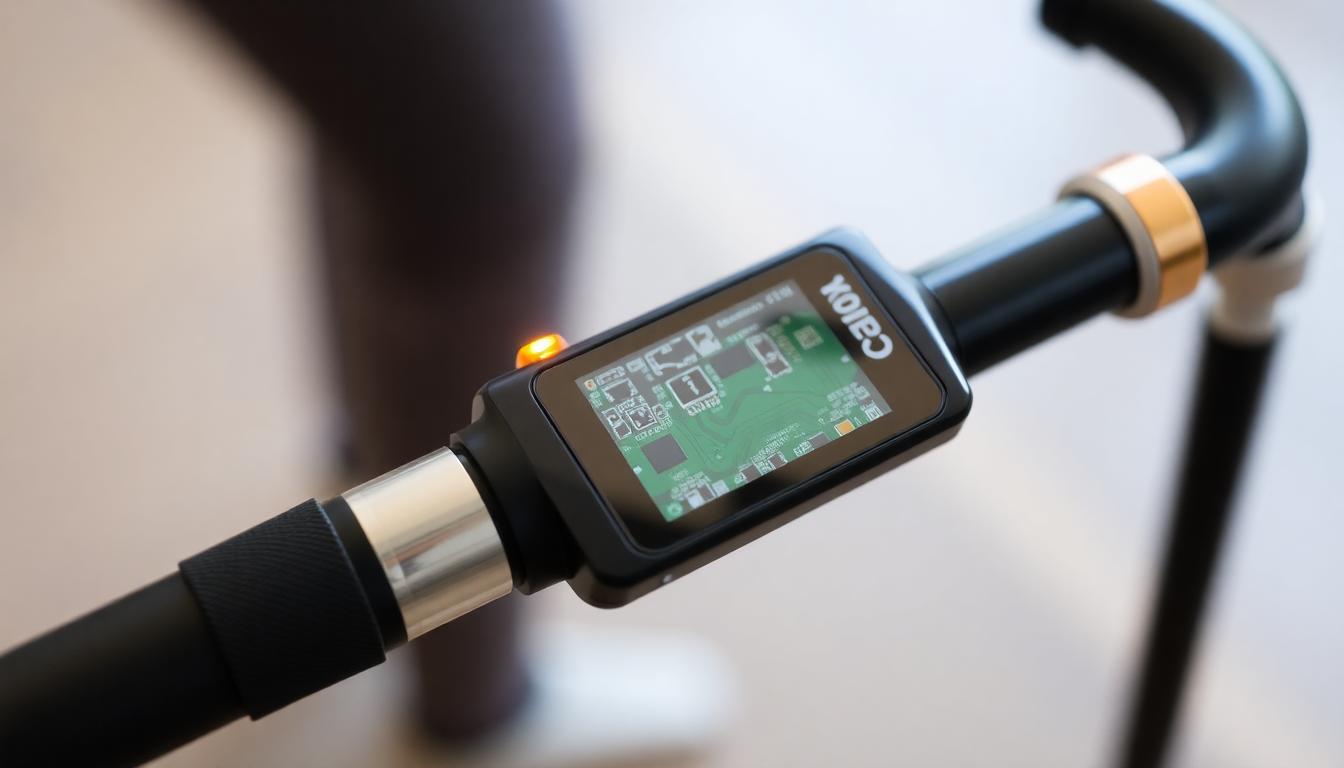

Sensor Fusion in Smart Canes: How Combining Accelerometers, Gyroscopes & GPS Reduces False Alarms and Boosts Fall Detection Accuracy

Introduction

Falls are a leading cause of injury among older adults and people with mobility impairments. Smart canes—traditional mobility aids augmented with sensors and connectivity—are emerging as practical, everyday devices to detect falls, summon help, and enable greater independence. However, reliable fall detection is not trivial. Systems based on a single sensor (commonly an accelerometer) often trigger false alarms when the cane is handled normally, dropped, or jostled. Sensor fusion—integrating accelerometer, gyroscope, GPS and auxiliary sensors—combined with robust algorithms dramatically reduces false positives and improves true-fall detection.

Why False Alarms Matter

• False alarms reduce user trust. When caregivers receive many false alerts, they may ignore notifications, putting users at risk.
• High false alarm rates increase operational cost for monitoring services and caregivers.
• Unnecessary emergency responses (ambulance, caregiver visit) are disruptive and expensive.
• False positives reduce adoption of smart assistive technologies among seniors and care organizations.

High-Level Overview of Sensor Roles

Each sensor contributes different but complementary information:

• Accelerometer measures linear acceleration (including gravity). It detects sudden impacts and changes in movement magnitude.
• Gyroscope measures angular velocity. It provides rotational movement and helps determine orientation changes.
• GPS / GNSS provides global position, speed, and coarse context (moving vs stationary, outdoor vs indoor). It’s valuable as a contextual filter but limited indoors.
• Magnetometer helps correct heading drift in orientation estimation when combined with accelerometer and gyroscope.
• Barometer / Altimeter can detect elevation changes (stairs, curbs) to help distinguish falls from step transitions.
• Proximity / Pressure sensors can detect contact with the ground or whether the cane is being gripped.

Fundamentals of Sensor Fusion

Sensor fusion aims to estimate the state (position, velocity, orientation, activity context) more accurately than any sensor alone. Fusion can be performed at various levels:

• Sensor-level (raw): combine raw signals (e.g., IMU vector fusion) to compute orientation and motion.
• Feature-level: extract numeric features from each sensor stream, concatenate them, and feed into models.
• Decision-level: fuse outputs of independent detectors (e.g., IMU-based fall classifier + GPS-based context classifier).

Common Fusion Algorithms

• Complementary Filter: Simple and low-cost; blends accelerometer (low-frequency reliable) with gyroscope (high-frequency reliable) to produce a stable orientation estimate.
• Kalman Filter & Extended Kalman Filter (EKF): Probabilistic method that models sensor noise and state uncertainty. EKF handles non-linearities (common when estimating orientation).
• Madgwick & Mahony Filters: Gradient-descent or integral-based orientation filters optimized for IMU data that perform well on constrained hardware.
• Particle Filters: Useful for multimodal distributions (complex motion, ambiguous sensor readings) but more computationally expensive.
• Machine Learning: Traditional classifiers (Random Forest, SVM), deep learning (LSTM, GRU, TCN), and hybrid approaches provide strong performance when trained on diverse labeled data.

How Fusion Reduces False Alarms: Concrete Mechanisms

• Distinguishing Cane Motion from Body Motion: When the accelerometer detects a large acceleration, the gyroscope can indicate whether this was mostly rotational (cane swing) or coupled with an orientation change consistent with body collapse.
• Orientation Tracking: Fusion provides tilt angles. A cane being flung may not lead to a sustained change in the user’s orientation; a fall typically results in a change in torso or hip orientation and prolonged inactivity.
• Contextual Suppression via GPS: If GPS shows high speed (vehicle) or location indicates indoors but no movement pattern consistent with a fall, alerts can be suppressed or handled differently.
• Post-Event Checks: Fusion supports multi-criteria checks after an impact: lack of subsequent movement, orientation indicating prone position, and absence of cane contact with the user increase confidence of a fall.
• State Machines & Activity Models: Fused sensors enable modeling of activities (walking, sitting, standing). Alarms can be suppressed during transitions consistent with normal activity (e.g., sitting down) and triggered only when deviations from expected sequences occur.

Feature Engineering: What to Compute From Sensors

Good features help machine learning models separate falls from normal activities. Useful features include:

• Time-domain: mean, standard deviation, RMS, peak acceleration, peak angular velocity, jerk (derivative of acceleration), tilt angle change, inactivity duration after impact.
• Frequency-domain: spectral energy bands, dominant frequency, spectral entropy (useful for differentiating rhythmic gait from sudden impacts).
• Event-derived: impact duration, number of peaks, time between impact and recovery movements, step count before event.
• Contextual: GPS speed, indoor/outdoor flag, time of day, ambient pressure changes.
• Combined metrics: resultant acceleration magnitude (sqrt(ax^2+ay^2+az^2)), orientation-corrected impact forces (remove gravity and tilt effects via fusion).

Designing the Detection Pipeline

• Preprocessing: sensor calibration, gravity removal (via orientation estimate), filtering (low-pass, high-pass), and resampling to a consistent rate.
• Event Detection: low-power thresholding or anomaly detectors flag candidate events that trigger high-frequency data capture and model inference.
• Feature Extraction: compute features over sliding windows centered on candidate events.
• Inference: run on-device classifier or lightweight sequence model to estimate fall probability.
• Post-Processing: apply temporal smoothing, state checks (e.g., inactivity persists for X seconds), and decision logic integrating GPS/context.
• Escalation: if a fall is detected, engage user confirmation (audio, haptic) and if unconfirmed, notify caregiver/emergency contacts with location and event metadata.

Machine Learning Considerations

Models must be robust, interpretable, and deployable to constrained hardware. Key choices include:

• Model Type: Traditional models (Random Forests) are interpretable and efficient. Sequence models (LSTM/GRU) capture temporal dependencies better for dynamic events.
• Training Data: Diverse datasets covering age ranges, gait styles, cane usage patterns, and environmental contexts. Include both simulated and real-world falls.
• Data Augmentation: Synthetic noise injection, rotation augmentation, scaling to improve generalization across users and device orientations.
• TinyML and Model Compression: quantization, pruning, knowledge distillation to shrink models for microcontrollers.
• On-device vs Cloud Inference: prioritize on-device inference for latency, privacy, and reliability; use cloud for model updates and aggregated analytics.

Localization and Indoor Context

GPS is excellent outdoors but poor indoors. Practical smart cane systems use hybrid approaches:

• Pedestrian Dead Reckoning (PDR): use IMU-derived step detection and heading to estimate relative movement indoors.
• BLE Beacons / Wi‑Fi Fingerprinting: provide room-level localization and anchor points to correct drift.
• Sensor Fusion for Localization: combine IMU PDR with beacon measurements using Kalman or particle filters for robust indoor tracking.

Power Management Strategies

Battery life is critical in wearable/portable devices. Balance accuracy with energy efficiency:

• Use low-power inertial sensors and run them continuously at minimal sampling until activity is detected.
• Duty cycle GPS; only enable high-accuracy GNSS when needed or use assisted GNSS from a paired smartphone.
• Event-driven high-rate sampling: trigger 100–200 Hz capture only during candidate events.
• Hardware accelerators: use microcontrollers with DSP or neural accelerators for efficient ML inference.
• Adaptive sampling: lower sampling during long periods of inactivity or when battery is low.

Testing, Validation & Metrics

Rigorous evaluation is required to quantify improvements from sensor fusion. Include these practices:

• Metrics: sensitivity (recall), specificity, precision, false alarm rate (per day), F1-score, latency, ROC-AUC, confusion matrices, and cost of false positives.
• Dataset Split: train/validation/test with user-level separation to avoid overfitting to particular individuals.
• Cross-validation: use k-fold or leave-one-subject-out to test generalization.
• Real-world Pilots: long-term deployments with consenting users to capture naturalistic data and rare fall events.
• Edge Cases: test cane drops, abrupt placements, tapping, sitting down heavily, stair slips, and vehicle movements.

User Experience and Alert Flows

UX impacts perceived reliability. Well-designed flows decrease unnecessary anxiety and increase trust:

• Immediate haptic/audio confirmation asking the user to cancel a detected alarm within a grace period (e.g., 20–30 seconds).
• Multi-tiered alerts: soft notification to user → caregiver text/call if unconfirmed → emergency services if no response and high confidence of fall.
• Provide clear event context in alerts: time, location, confidence level, recent activity, and whether the user responded to the device prompt.
• User controls to set sensitivity preferences, quiet hours, and caregiver contacts.

Security, Privacy & Ethics

• On-device processing: preserve privacy by performing inference locally when possible and sharing only minimal metadata.
• Encryption: encrypt data in transit and at rest; use authenticated channels (TLS) for cloud communication.
• Consent & Transparency: clearly explain what data is collected, how it’s used, and retention policies.
• Regulatory Compliance: consider HIPAA (US), GDPR (EU), and other regional privacy laws when handling health-related data.

Regulatory & Clinical Validation

Products intended for health monitoring may need clinical validation and compliance:

• Clinical trials or observational studies to quantify sensitivity/specificity in target populations.
• Documentation of algorithms, risk analysis, and human factors studies for regulatory filings.
• Depending on claims, seek classification guidance (e.g., medical device vs consumer wellness) in your jurisdiction.

Case Study A — Urban Apartment Pilot (Hypothetical)

Overview: 100 older adults with varying mobility impairments trial a sensor-fusion smart cane for 6 months. The cane includes a 6-DOF IMU, BLE for indoor anchors, and a companion smartphone app for assisted GNSS.

• Baseline (accelerometer-only): False alarm rate = 0.8/day per user; sensitivity = 88%.
• After fusion (accelerometer+gyroscope+BLE/GPS context + ML model): False alarm rate reduced to 0.2/day; sensitivity improved to 92%; average alert latency = 12s.
• Outcomes: User satisfaction increased, caregiver trust improved, emergency calls reduced by 45% compared to baseline.

Case Study B — Rural Home with Limited Connectivity (Hypothetical)

Overview: 40 users in rural settings where cellular coverage is intermittent. The cane must operate reliably offline.

• Design choices: full on-device inference with TinyML models, local storage of events, opportunistic upload when connected, and satellite-assist GNSS when available.
• Results: Fusion of IMU and barometer for local context reduced false positives from cane drops by 67%. Local haptic confirmation prevented needless alerts when caregivers were not available due to network outages.

Implementation Roadmap (Step-by-step)

• Define user personas and target use cases (indoor-only, outdoor, clinical monitoring).
• Select hardware: 6-DOF IMU, microcontroller with low-power modes, GNSS/assisted GNSS, BLE module, battery sized for target uptime.
• Develop firmware: sensor drivers, calibration routines, fusion filter (Madgwick/Kalman), feature extraction, ML runtime.
• Train models: collect labeled data (public datasets + pilot users), perform augmentation, train and compress models for edge deployment.
• Pilot: run small-scale trials for 2–3 months, iterate on thresholds, UX, and power tuning.
• Scale: prepare cloud backend for OTA model updates, caregiver dashboards, analytics, and regulatory documentation.

Maintenance & Long-Term Considerations

• OTA updates for firmware and models; ensure secure update mechanism and rollback capability.
• Periodic recalibration prompts (auto-calibration during idle periods) to maintain sensor accuracy.
• User feedback loop: log false alarms and missed events, enable optional user/caregiver annotations to improve models.
• Model retraining strategy: scheduled retraining using anonymized aggregated data or federated learning to preserve privacy.

Benchmarks and Comparative Evaluation

When claiming improved accuracy through fusion, benchmark against:

• Accelerometer-only system baseline using identical hardware.
• Commercial fall detectors and published academic systems (using standardized datasets like SisFall and newer clinical datasets where available).
• Report metrics across subpopulations (age groups, mobility levels) and scenarios (indoors/outdoors/stairs/vehicle).

Common Pitfalls & How to Avoid Them

• Overfitting to synthetic or laboratory falls: collect naturalistic data and use user-level cross-validation.
• Ignoring device orientation variability: mount-agnostic designs and calibration routines are essential.
• Relying solely on GPS: augment indoor localization strategies to avoid blind spots.
• Poor power planning: design for realistic duty cycles, and validate battery life under expected usage patterns.

Future Directions (2025 and Beyond)

• Advances in TinyML and on-device neural accelerators will allow richer sequence models to run in real-time on battery-constrained devices.
• Federated learning and privacy-preserving aggregation will enable model improvements across populations without sharing raw sensor data.
• Multimodal fusion with smart-home sensors, wearable vitals (heart rate), and voice assistants to provide richer fall context and validation.
• Standardized, diverse fall datasets including cane-specific handling behaviors to accelerate research and benchmarking.

Conclusion

Sensor fusion—combining accelerometers, gyroscopes, GPS, and supporting sensors—provides the contextual and kinematic insight necessary to dramatically cut false alarms while preserving or improving fall detection sensitivity. For smart canes, the right combination of filters, feature engineering, ML models, and UX design yields reliable, privacy-respecting systems that caregivers and users can trust. By emphasizing on-device processing, adaptable energy strategies, and careful validation across realistic scenarios, developers can deliver smart canes that truly enhance safety and independence.

References & Resources

• Public datasets: SisFall, mHealth, UP-Fall Detection (useful starting points; supplement with real-world pilot data)
• Algorithms: Madgwick orientation filter, Mahony filter, Kalman/EKF literature
• TinyML resources: TensorFlow Lite for Microcontrollers, Edge Impulse
• Standards & guidelines: WHO fall prevention reports, regional medical device guidance
